Our Stainless Ring have worked in Hokkaido.
This photo shows Rishiri-fuji, ferryboat"Soya" and our stainless ring which work at the Oshidomari port.

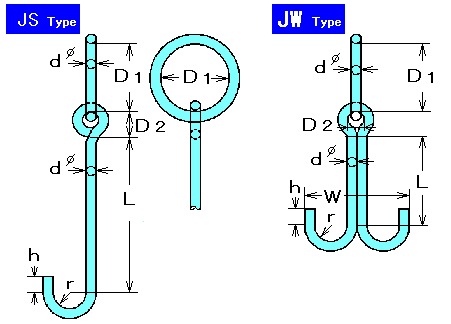

Item No.	Dwg.No.	d	D 1	D 2	L	r	h	w	Size	Weiht
JS16-130- 700	JSK-161	16	130	32	400	32	24		700	1.9
JS19-130- 831	JSK-191	19	130	38	475	38	29		832	2.9
JS22-150- 963	JSK-221	22	150	44	550	44	33		963	4.5
JS25-180-1095	JSK-251	25	180	50	625	50	38		1,095	6.7
JS32-250-1503	JSK-325	32	250	100	800	60	50		1,503	15.1
JW16-130- 880	JWK-161	16	130	36	208	32	24	192	880	2.2
JW19-130-1042	JWK-191	19	130	42	247	38	29	228	1,042	3.4
JW22-150-1210	JWK-221	22	150	50	286	44	33	264	1,210	4.7
JW25-180-1370	JWK-251	25	180	55	325	50	38	300	1,370	7.8
JW32-250-1738	JWK-325	32	250	70	420	60	50	368	1,738	16.6
